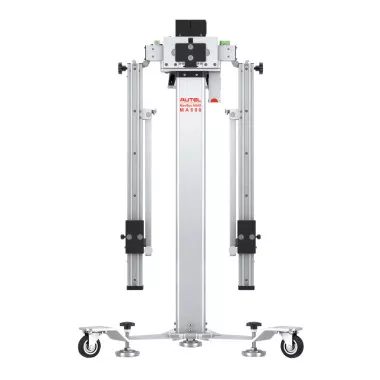

Autel MA600 Mobile ADAS System
The Autel MaxiSYS ADAS MA600 portable calibration system is ideal for multi-location shops. The compact frame, folds and disassembles to easily fit into the trunk of a car or service truck for easy transportation.
Features
- Portable ADAS Calibration System.
- Perform Vehicle LDW Camera Calibrations.
- Collapsible Aluminum Calibration Frame with Travel Case.
- Includes 2-Line Centering and 5-Line Alignment Lasers.
- Includes LDW Targets for Numerous Vehicle Manufacturers.
- Compatible Autel ADAS Tablet and MaxiSYS MS906BT Tablet Series and Higher when Upgraded with ADAS Software (*Sold Separately).
Accessories Included:
- Two Line Laser (1X)
- Laser Assisted Reflector (1X)
- Laser Reflective Board (1X)
- L Bracket (1X)
- Five Line Laser (1X)
- Plumb Line (1X)
Calibration Frame & Pattern Board Specifications
| Calibration Frame Dimensions (WxDxH) | 2510 mm (98.82″) x 714 mm (28.11″) x 1480-2105 mm (58.27-82.87″) |
| Calibration Frame Weight | Net Weight: MA600 Base (includes other standard accessories): 53.6 lbs MA600 Main Column + Crossbar (includes other standard accessories): 47.2 lbs Total Net Weight: 100.8 lbs Gross Weight: MA600 Base (including shipping package): 102 lbs MA600 Main Column + Crossbar (including shipping package): 88.2 lbs Total gross Weight: 190.2 lbs |
| Pattern Board Size (LxW) | 1360 mm (53.54″) x 960 mm (37.80″) |
| Crossbar Length | 2510 mm (98.82″) |
| Measurement Range of Crossbar’s Height | Height min=350 mm (13.78″) Height max=950 mm (37.40″) |
| Measurement Range of Pattern Board ‘s Height | Height min=1000 mm (39.37″) Height max=1600 mm (62.99″) |
| Rated Power | 24 V, 3A |
| Laser Rated Power | 3V, 25 mA |
| Laser Battery Type | AA 2×1.5V |
| Calibration Frame Working Temperature | 0°C to 50°C |
| Calibration Frame Storage Temperature | -20°C to 60°C |
| Laser Class | Class 2 |
| Certification | CE, FCC, RoHS |
Also Available In These Packages:
- MA600 LDW
- MA600 LDW + Tablet
- MA600 All Systems
- MA600 All Systems +Tablet
