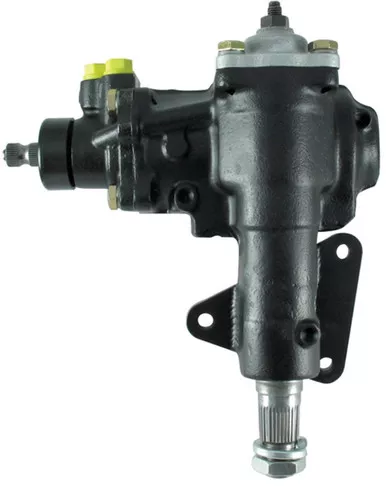

Introducing the Borgeson Power Steering Conversion Box, meticulously crafted for 1962-1966 Chevy II Nova, featuring a new manufactured modern power steering gearbox with an 11/16″-36 spline input shaft and a quick 14:1 ratio. Elevate your Chevy II Nova’s steering experience with enhanced performance and responsiveness.
Key Specifications (Part 800117):
- Input Shaft: 11/16″-36 Spline
- Pitman Shaft: 1-1/8″ GM with 32 Splines and 4 Master Splines
- Pressure Port: 16mm X 1.5 Flare (Located closest to the engine)
- Return Port: 16mm X 1.5 Flare (Located closest to the input shaft)
- Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
- Flow Rate: 2.0-2.5 GPM Flow Rate Recommended
Please note the following important installation notes:
- The power conversion box is intended for use with the stock column.
- Floor shift applications only. Any stock column can be modified to fit our box; however, column shift is not possible with the added length of the steering box.
- Borgeson column shaft 990041 is recommended for installation.
Assembled and tested in the USA from globally sourced components, all Borgeson power steering boxes come with a 3-year warranty. Experience the precision and reliability of Borgeson – where classic meets modern. Drive with assurance, drive with Borgeson.
