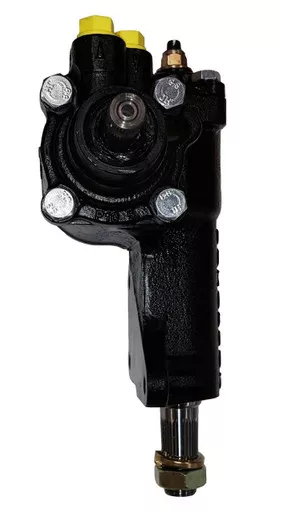

Introducing the Borgeson Power Steering Conversion Box designed exclusively for 1965-1967 Ford Mustangs with a 1″ sector shaft, delivering a modern integral power steering experience. This conversion box features a quick 14:1 ratio and a firm modern feel, providing enhanced steering performance and responsiveness.
Key Specifications (Part 800110):
- Input Shaft: 11/16″-36 Spline
- Pitman Shaft: 1″ Ford with 32 Splines and 4 Master Splines
- Pressure Port: 16mm X 1.5 Flare (Located closest to the engine)
- Return Port: 16mm X 1.5 Flare (Located closest to the input shaft)
- Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
- Flow Rate: 2.0-2.5 GPM Flow Rate Recommended
Please note that steering column modifications are required for installation. Refer to the product instructions for detailed information. Additionally, this box fits 1960-1965 Falcons with a 1″ sector shaft and will not fit with factory Z-Bar clutch linkage. For 1967 applications, verify pitman shaft size before ordering.
Assembled and tested in the USA from globally sourced components, all Borgeson power steering boxes come with a 3-year warranty. Elevate your Mustang’s steering experience with Borgeson – where classic meets modern, and precision meets dependability. Drive with assurance, drive with Borgeson.
