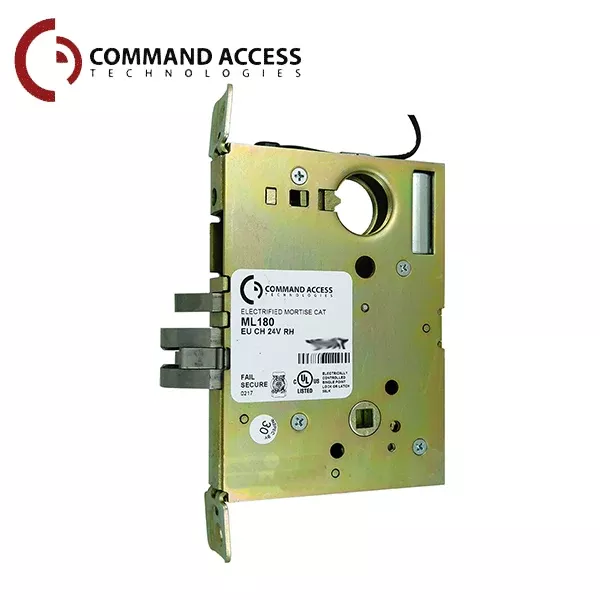

Command Access – Electrified Mortise Chassis Only – Fail Secure – Storeroom – Grade 1

The Command Access ML180 (L9000) retrofit series mortise lock utilizes a high quality Grade 1 chassis that is built to withstand years of use. You can install this lock with the confidence of knowing that the ML1 carries our top tier features, options, and specifications. Compatible with any Schlage L9000 series.Features:Electrified Mortise LockStoreroom FunctionRetrofits Schlage L9000 seriesFail Secure Continuous duty solenoids allow for “continuously on” applications Plug-in bridge rectifier that allows for an AC or DC power source supplied with all locksLow current drawHanding Field ReversibleSpecifications: Lock Function:EU – Fail Secure – Electronically Unlocked – Storeroom FunctionHanding:Non-HandedBackset:2-3/4″Latch:3/4″ ThrowDimensions10.5” x 3.75”: x 2.5”Weight3 LbsLevers:L17 LeverOperating Voltage:24VAC/DCAmperage:350 mAPower Consumption:8 wattsSolenoid Coil Resistance:69 ΩCertifications:ANSI/BHMA Meets or exceeds Series Grade 1 requirementsUL Listed 3-hour fire ratingWarranty:3-Year Manufacturer Warranty Downloads:Spec SheetInstruction Sheet
