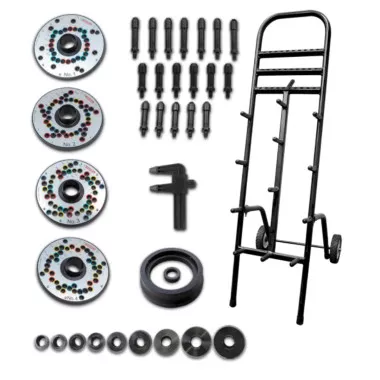

Hofmann EAK0309J32B Level 2 Balancer Centor Plate Kit
Features
Flange Plate Kit with Collets includes:
| ►Flange Plate 1: | ►Rounded Pin (5) | ►Collet 1 | ►Collet 6 |
| 4 x 95.25, 98, 100, 101.6, 108, | Head Ø 24.5 mm | 48.3-61 mm / 2.29-2.40″ | 86.4-99.1 mm / 3.40-3.90″ |
| 114.3, 170 mm / 3.75″, 4″, 4.5″ | Length 90 mm | ||
| 7x 150 mm | |||
| ►Flange Plate 2: | ►Short Tapered Pin (6) | ► Collet 2 | ►Collet 7 |
| 5x 98, 105, 108, 110, 115, | Head Ø 34.5 mm | 55.9-68.6 mm / 2.20-2.70″ | 94-106.7 mm / 3.70-4.20″ |
| 120.65, 135, 154.95 mm / 4.75″ | Length 80 mm | ||
| ►Flange Plate 3: | ►Long Tapered Pin (7) | ►Collet 3 | ►Collet 8 |
| 5x 100, 108, 112, 114.3, 120, | Head Ø 22.5 mm | 63.50-76.2 mm / 2.50-3.00″ | 101.6-114.3 mm / 4.00-4.50″ |
| 127, 130, 139.7, 150, 165.1 mm / | Length 100 mm | ||
| 4.5″, 5″, 5.5″, 6.5″ | |||
| ►Flange Plate 4: | ►Measuring Tool | ►Collet 4 | ►Collet 9 |
| 3x 198, 112, 114.3, 115, 120, | 71.1-83.8 mm / 2.79-3.29″ | 109.2-121.9 mm / 4.29-4.79″ | |
| 127, 130, 132 mm / 4.5″, 5″ | ►Storage Stand | ||
| 4x 165.1 mm / 6.5″ | ►Collet 5 | ►Spacer Kit | |
| 6x 135, 139.7 mm / 5.5″ | ► Application Guide | 78.7-91.4 mm / 3.09-3.59″ |
