Wolverine Winch Mount

Original price was: $15.12.Current price is: $10.86.

Sale!
SKU: 12969 Category:
Share

Part 12969

Fits:

  •  2020 Yamaha Wolverine
  •  2019 Yamaha Yamaha Wolverine X2/X4
  •  2019 Yamaha Wolverine
  •  2018 Yamaha Wolverine
  •  2017 Yamaha Wolverine
  •  2016 Yamaha Wolverine

Description:

  • Fits: 2016-21 Yamaha Wolverine(This will fit the X-2 and X-4 but we will need to know if you have and X-2 or X-4 when you order. Please, note your year and model in the notes when checking out).
  • Laser Cut and CNC formed.
  • Made from 3/16” and ¼” American Steel.
  • Powder Coated-Black.
  • Two Winch Bolt Patterns (3″ deep x 4.875″ wide and 4″ deep x 6″ wide, for regular and wide spool winches)
  • Made In Cleveland Ohio.

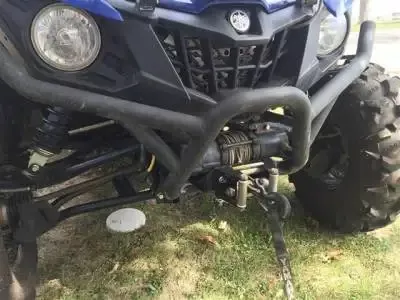

    Allows you to mount a winch to the stock front bumper. Accepts up to a 4000 lb. winch.

    Note: when mounting a wide spool winch you will have to drill (2) 3/8” holes in the front stock bumper using the winch mount as a pattern.

    We reserve the right to make modifications/improvements to our products at any time. Vehicles may have changes throughout the year. Therefore, pictures are a representation of the product you will be getting but may vary due to product revisions.

  • Accepts most winches up to 4000 lbs.
  • Viper Elite 3500
  • Viper Elite 4000
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: RT40 / XT40
  • WARN: Vantage 2000-4000lb
  • WARN: Vantage 2000-4000lb
  • WARN: ProVantage 2500-4500lbs
  • ATV2500 / ATV3000
  • Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000
  • MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND : 2000lb 68146
  • BADLAND : 3000lb 68145 / 5000lb 68144
  • CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501(reqires rollers) / 14061
  • CHAMPION : 14501 / 14551 / 14552 / 40252 (4500lbs)
  • CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 – Requires the correct Fairlead with a 4.875″ Bolt Pattern (available if needed EMP P/N: 10906) – Listed Models come with incorrect ATV Roller Fairleads
  • CHAMPION: 14001 and 14061
  • KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER : KT2000 – Requires purchase of a roller Fairlead (EMP P/N: 10906)
  • SMITTYBILT : XRC 2.0
  • SMITTYBILT : XRC 3.0
  • XGEAR: X3000 / X4000 – 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) – All with 3.00″ x 4.875″ Bolt Pattern mount-up – All with 3.00″ x 6.600″ Bolt Pattern mount-up
  • Possibly Many others with the below standard Mounting patterns – 4-Hole (3.00″ x 4.875″ bolt pattern with Rollers that are 4.875″ bolt pattern) – 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with Rollers that are 6.600″ or 6.000″ bolt pattern) – 2-Hole (3.10″ with Rollers that are 4.875″ bolt pattern)
